Patient Transfer Lift Y404 by INTCO Medical
Y404
Lift: Y404

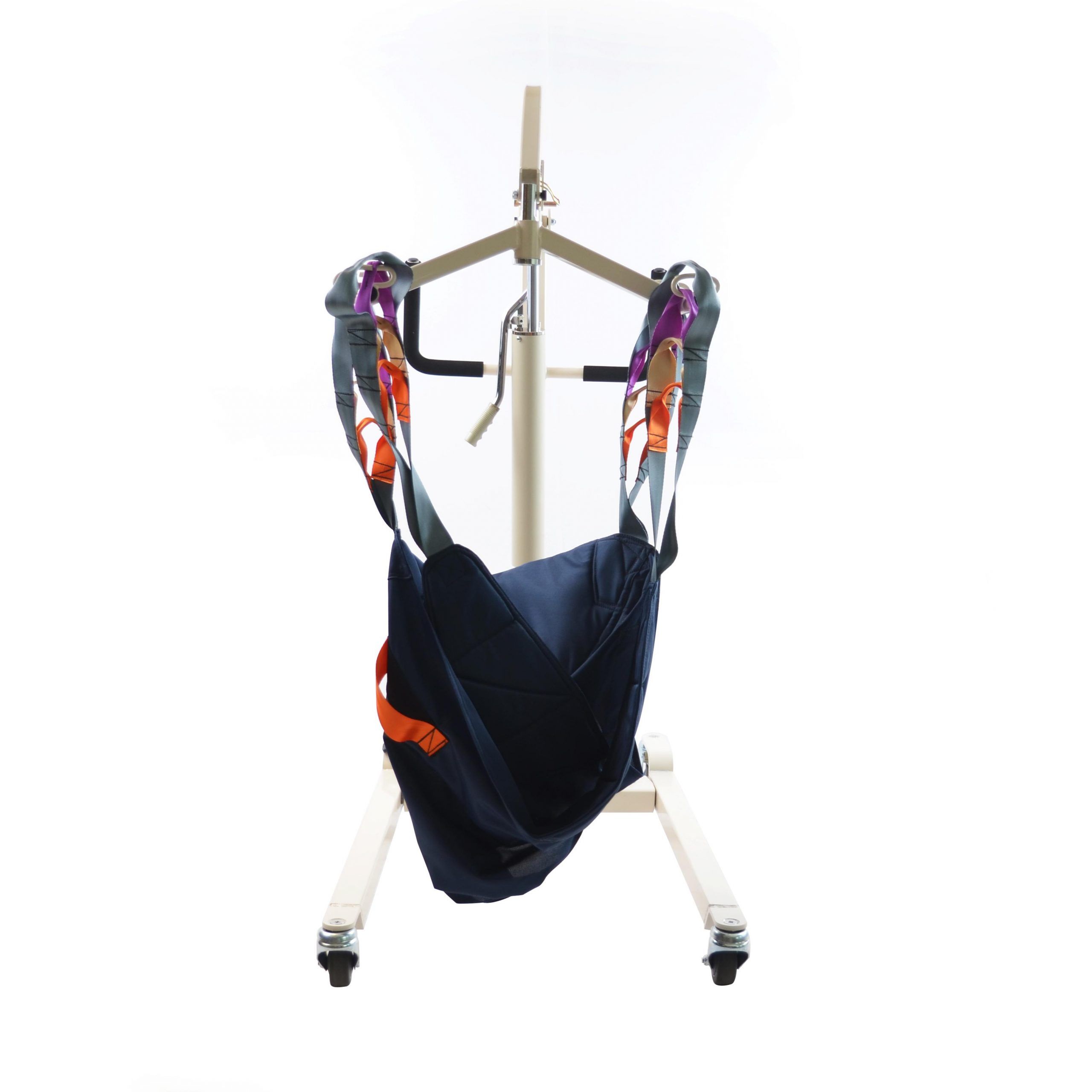

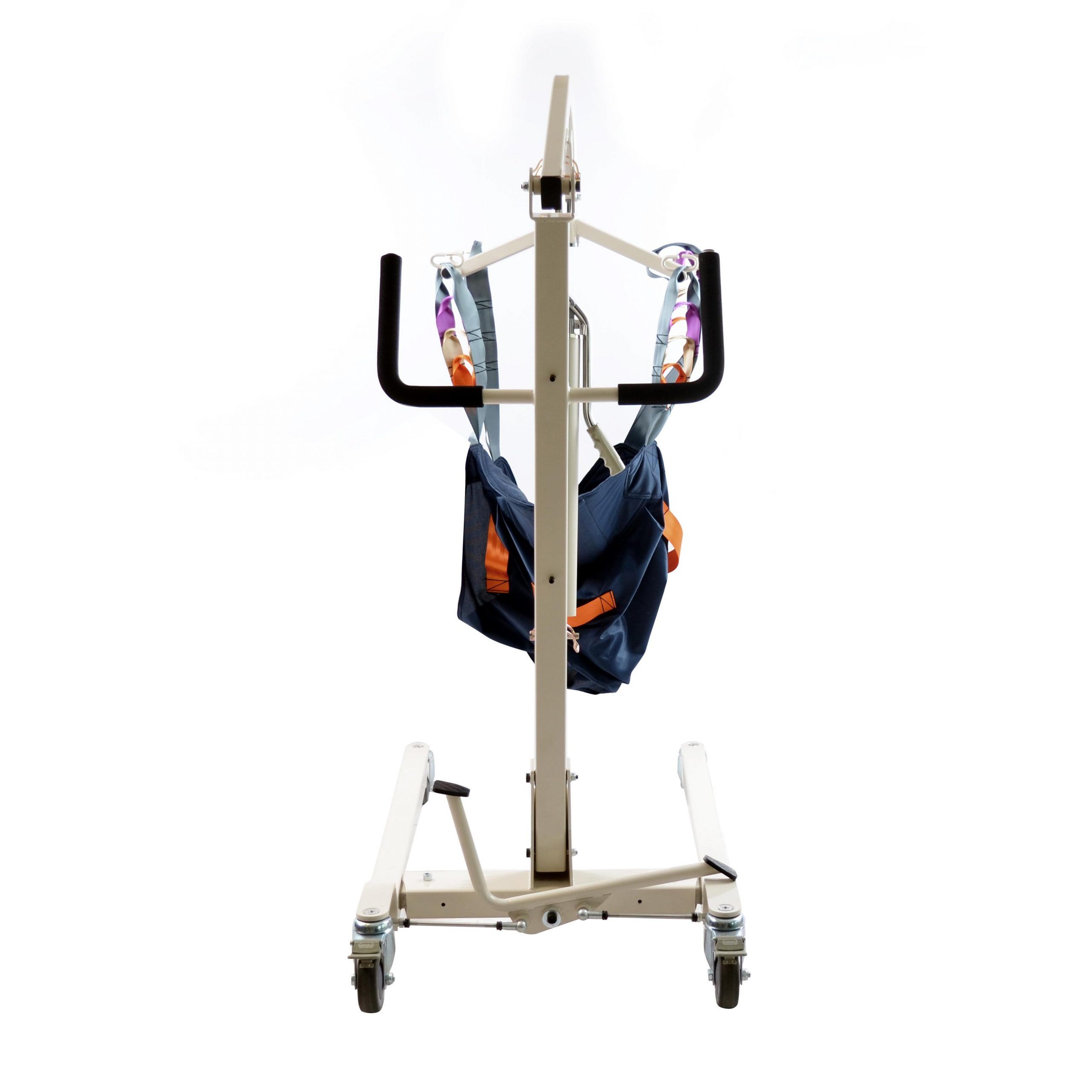

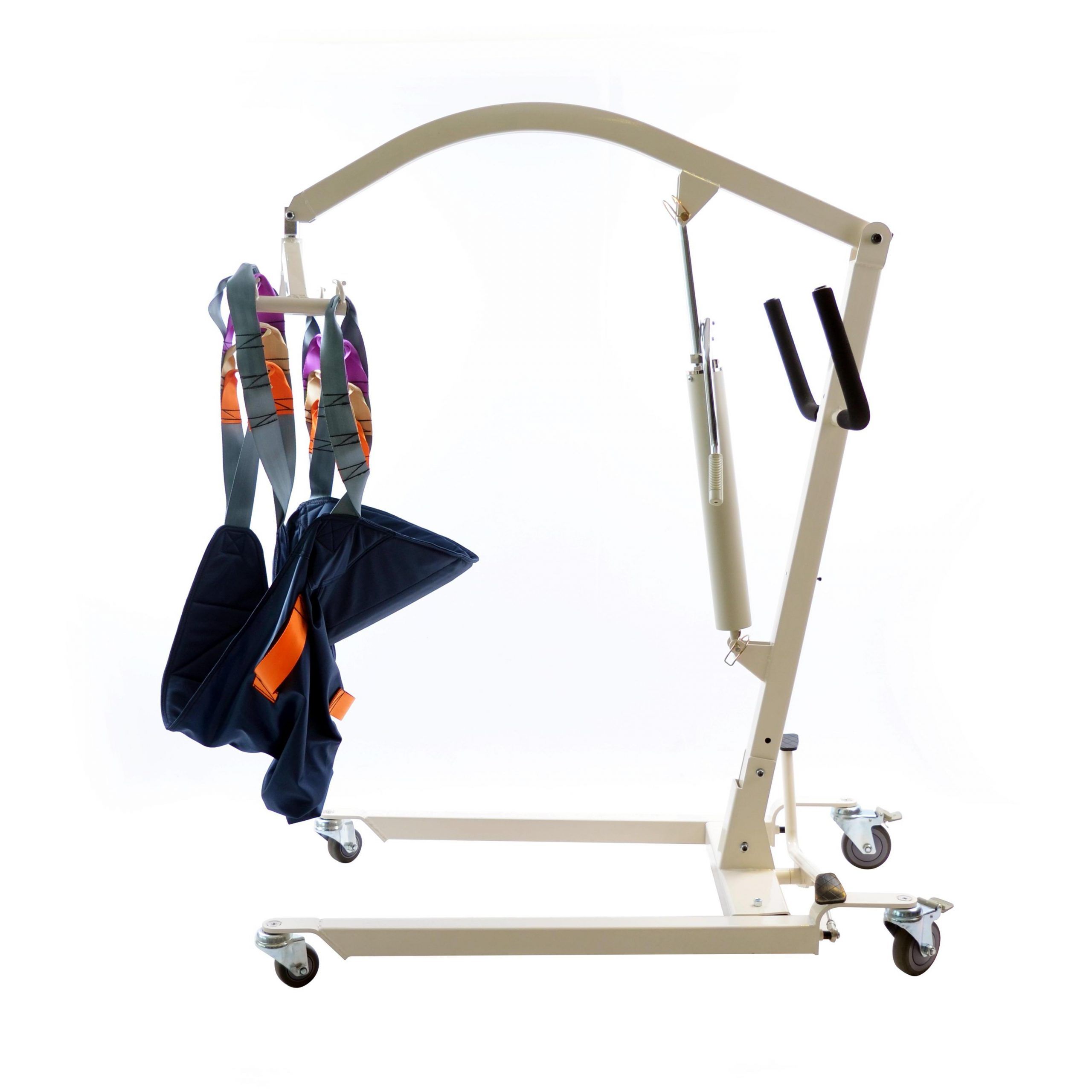

The Y404 Patient Transfer Lift is a durable, easy-to-use device for safe patient transfers. It features a sturdy frame, adjustable lift arm, and ergonomic handles. With lockable wheels for smooth mobility and stability, it’s ideal for hospitals, nursing homes, and home care. Compact and foldable for easy storage.
- Frame: Steel, powder coating
- Chassis Length: 1160mm
- Chassis Width: 600mm-800mm
- Lifting Height: 910mm-1900mm
- Handle Height: 1000mm
- Caster Height: 90mm
- Motor: DC 24V 8000N
- Battery: DC 24V 5Ah, rechargeable battery Approx. 60 lifts per full charge
- Charger: 24V-1A
- Charging Time: 6 hours per time
- Front Caster: 3"solid tire, plastic wheel optional

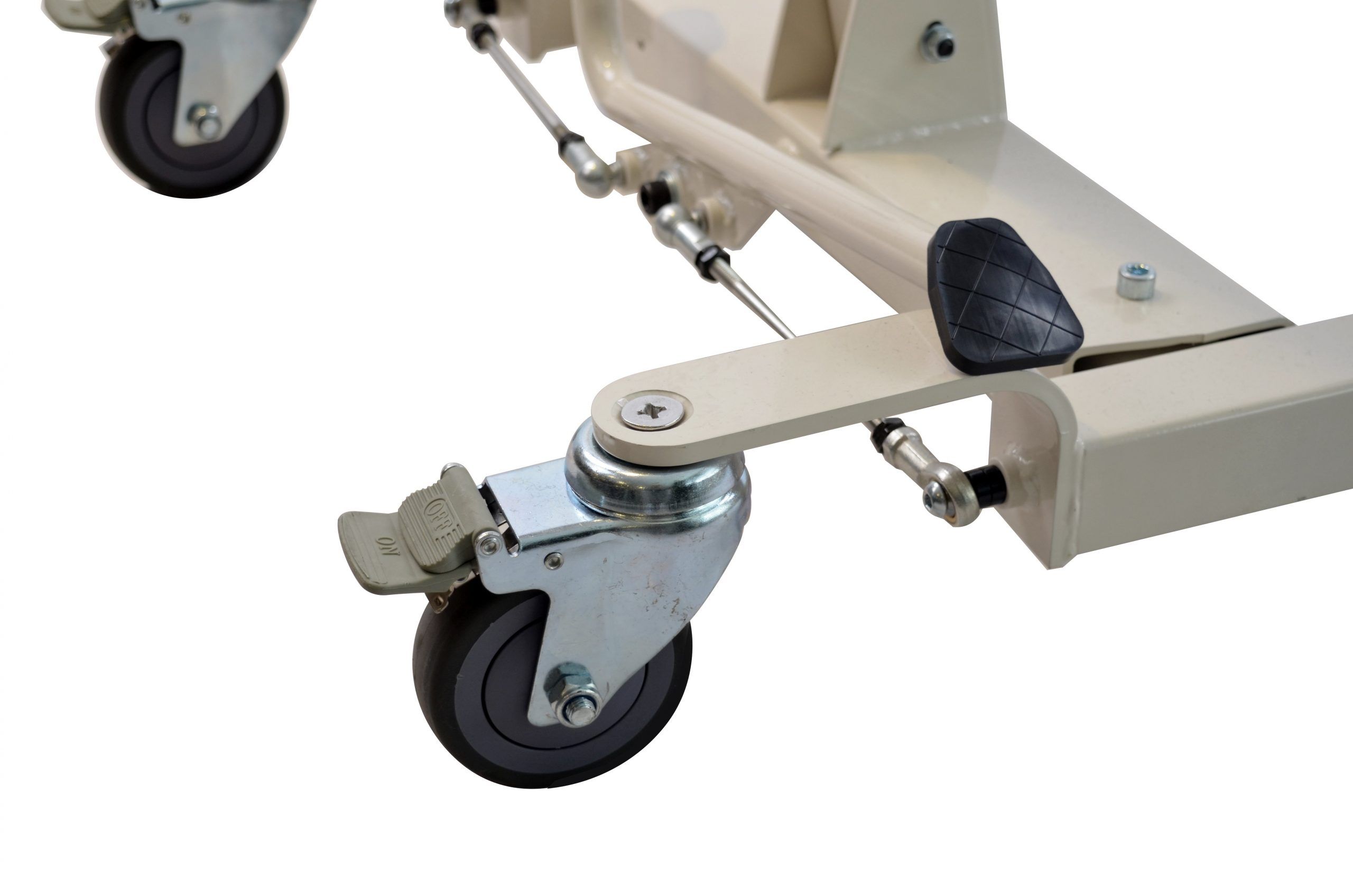

- Rear Caster: 4"solid tire with locking, plastic wheel optional
- Max. User Weight: 150 KGS (23.62 stone)
- Alternatives: Purpose designed sling
- Package: 1240*630*350mm
- G./N.W.: 51/43 KGS
Product Parameters
| Chassis Length(mm) | Chassis Width(mm) | Lifting Height(mm) | Handle Height(mm) | Caster Height(mm) | Motor | Charger | Front Caster Spec. | Rear Caster Spec. | Max. User Weight(kg) | G./N. Weight(kg) | Carton Size(mm) |
| 1160 | 600-800 | 910-1900 | 1000 | 90 | DC 24V 8000N | 24V-1A | 3" | 4" | 150 | 51/43 | 1240*630*350 |
Related Products
FAQs
- The Y404 is designed for care environments where trained caregivers need assisted transfer equipment for routine patient handling. Its product details should be checked against the intended user profile, local safety requirements, and procurement standards before purchase. For B2B buyers, it works best when selected by use scenario, seat or size needs, and after-sales service expectations.
