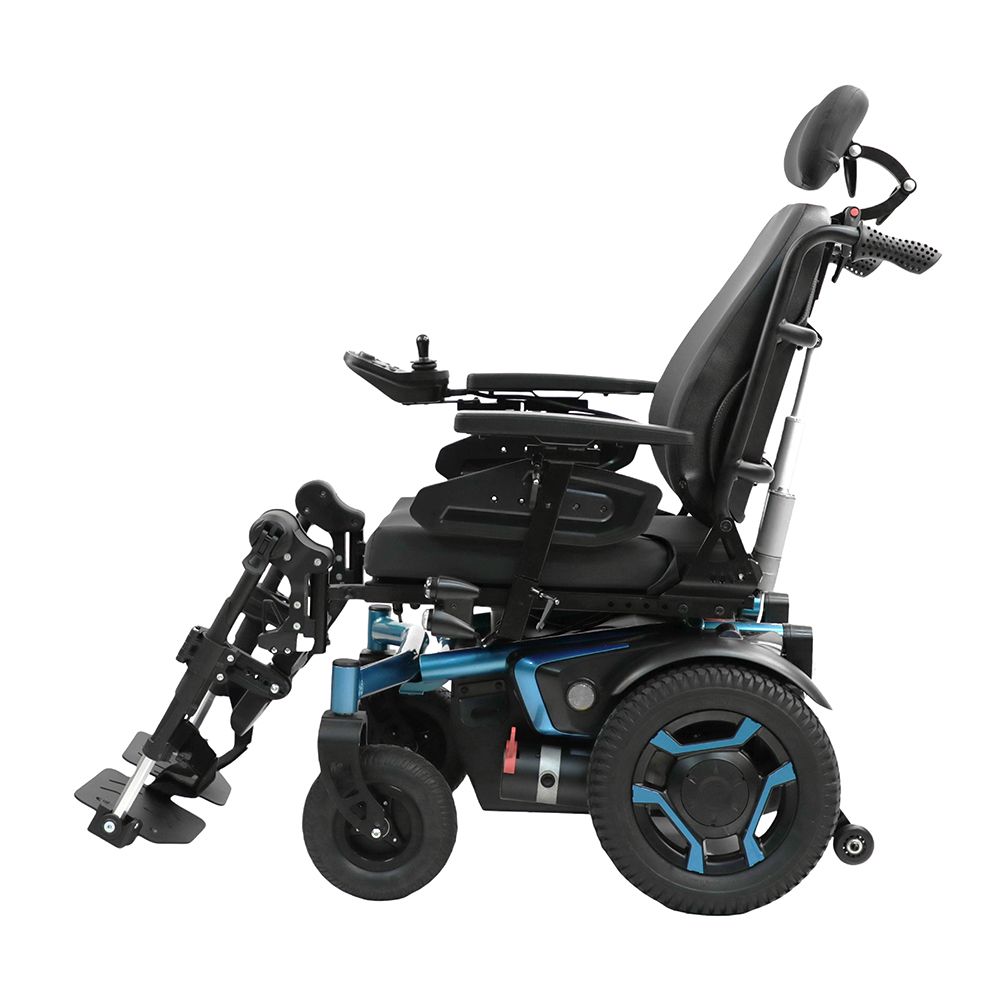

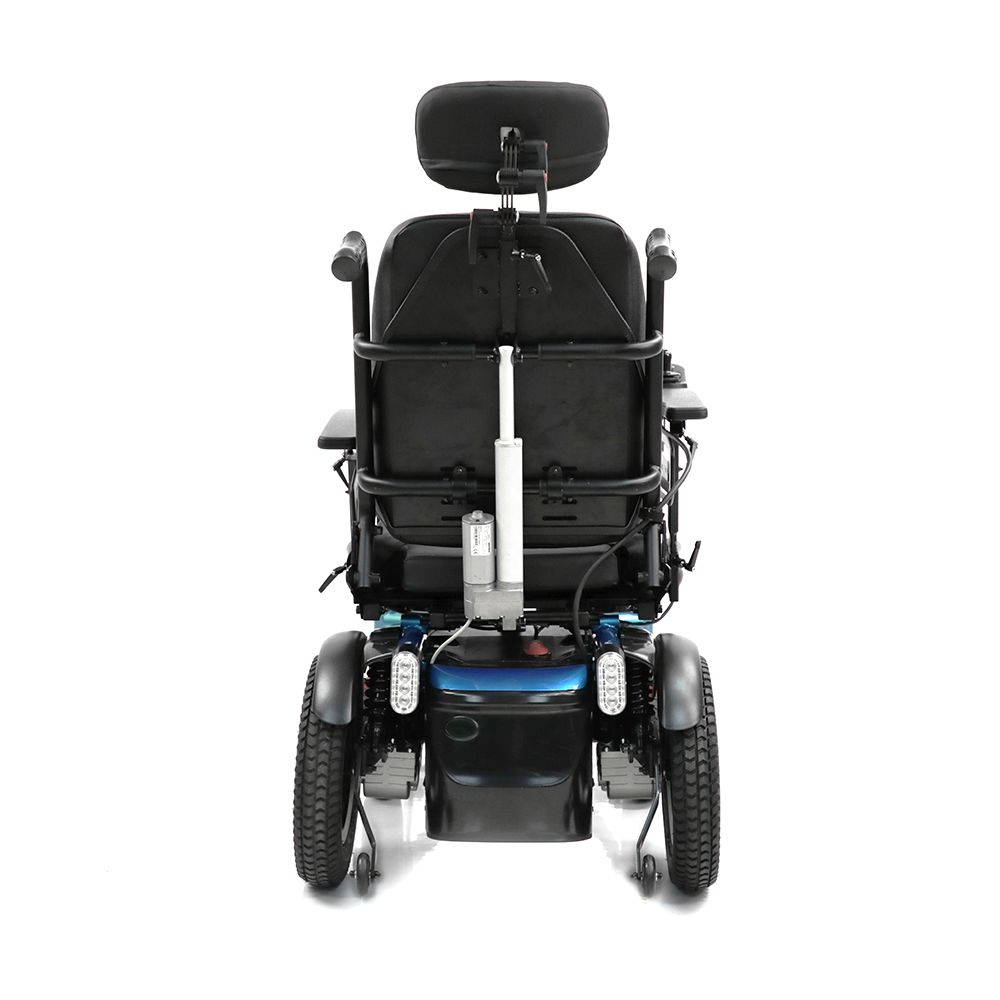

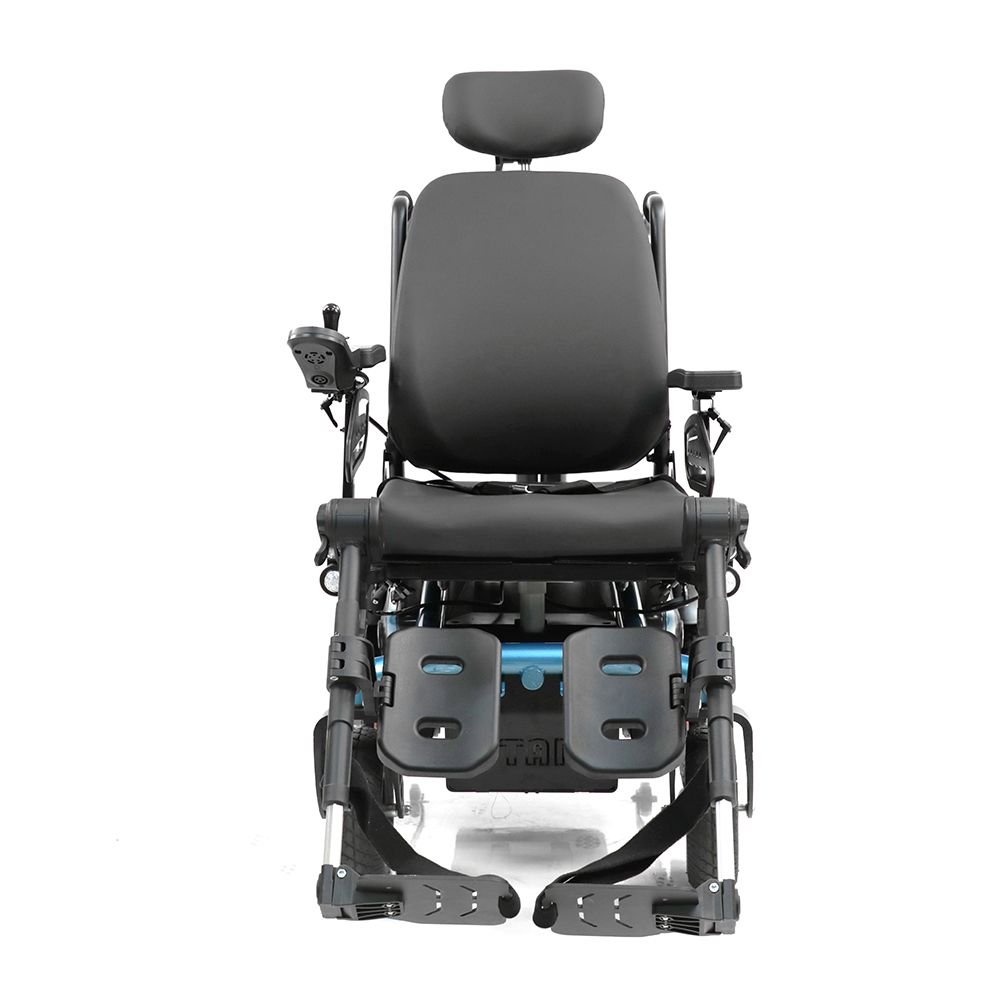

STAR Power Wheelchair by INTCO Medical
STAR
Power wheelchair

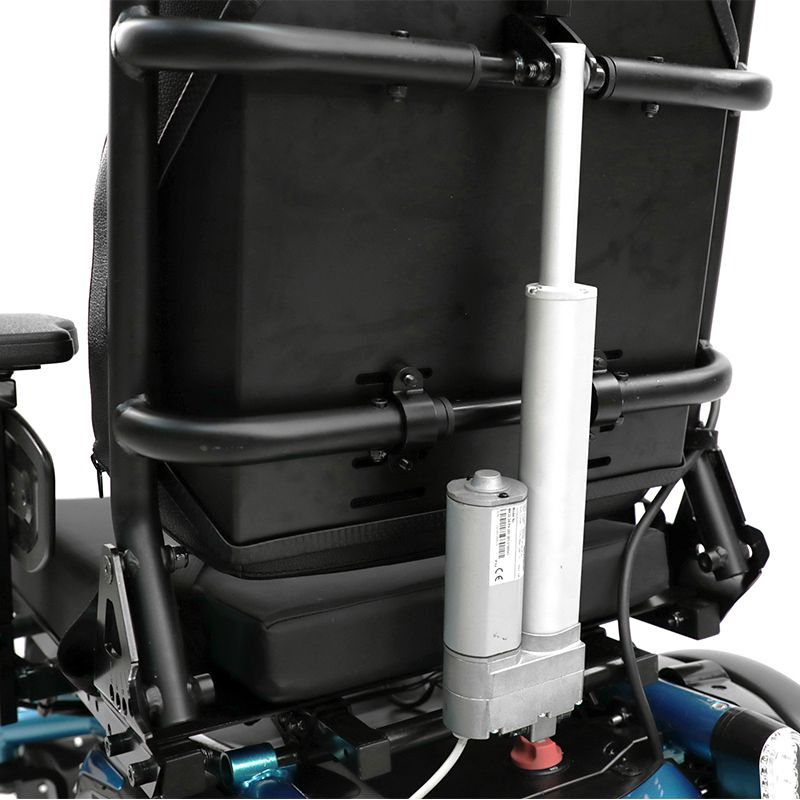

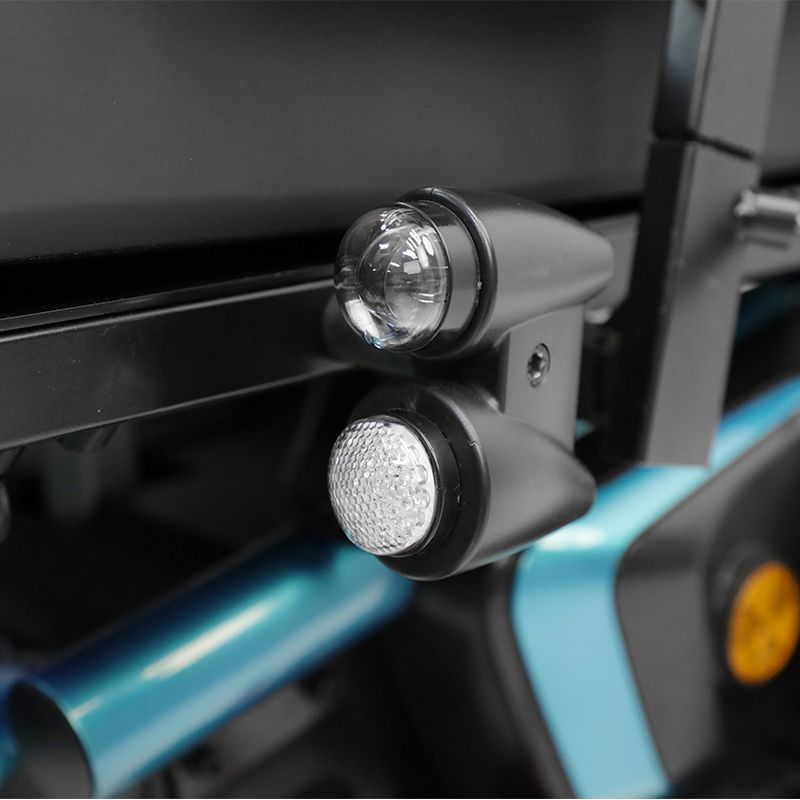

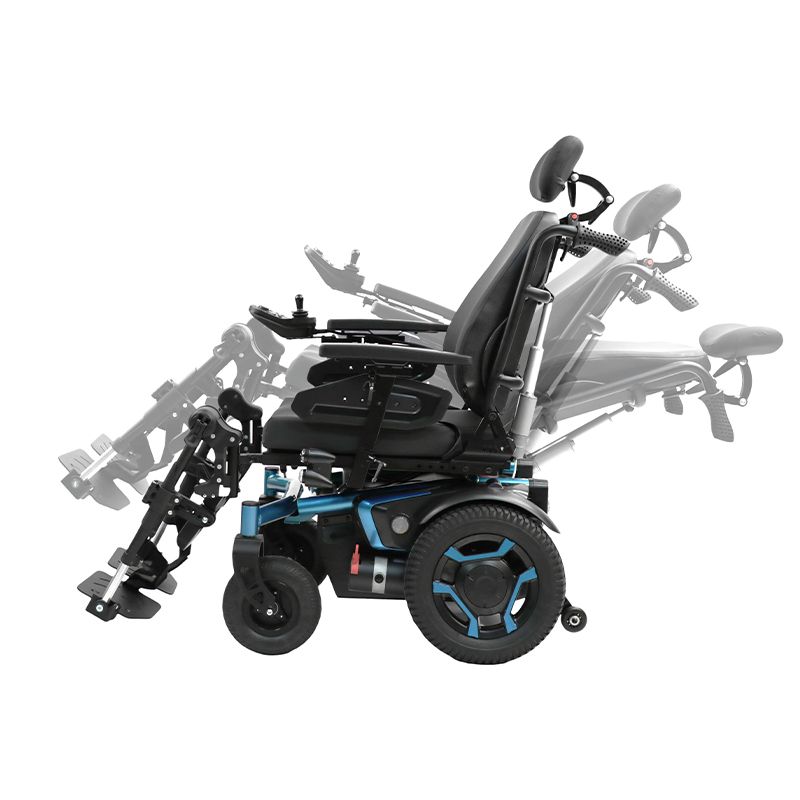

Multi-angle adjustment; Rear lights; Dynamic/PG controller
- Frame: Steel, powder coating

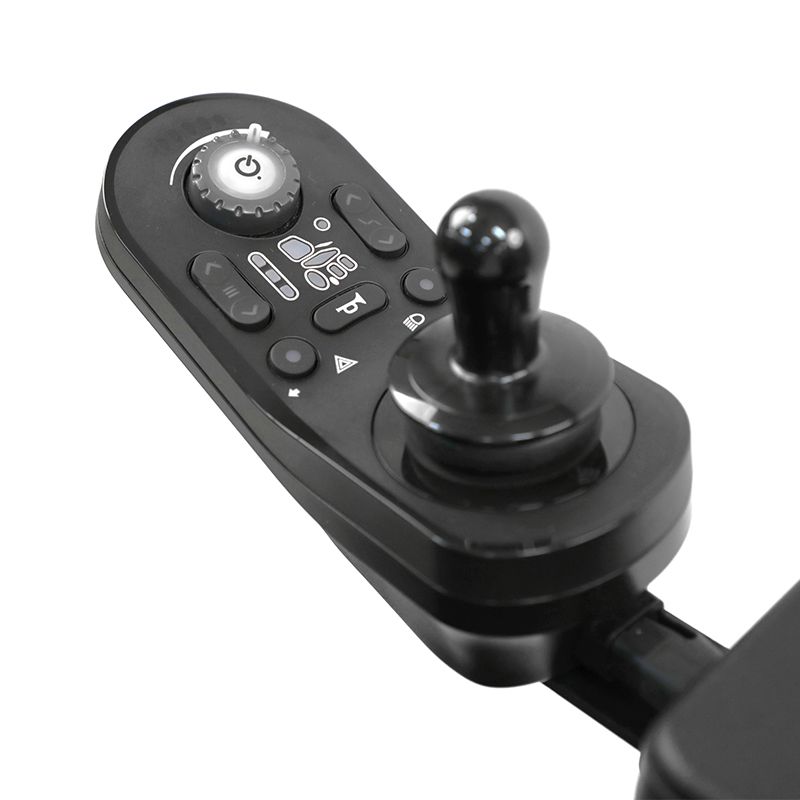

- Controller: Dynamic(drive only/drive+light+actuator)
- Motor: 2*340W, electromagnetic brake
- Max. Speed: 10km/h
- Travel Mileage: 30km
- Battery: Lead-acid batteries 24V 52Ah

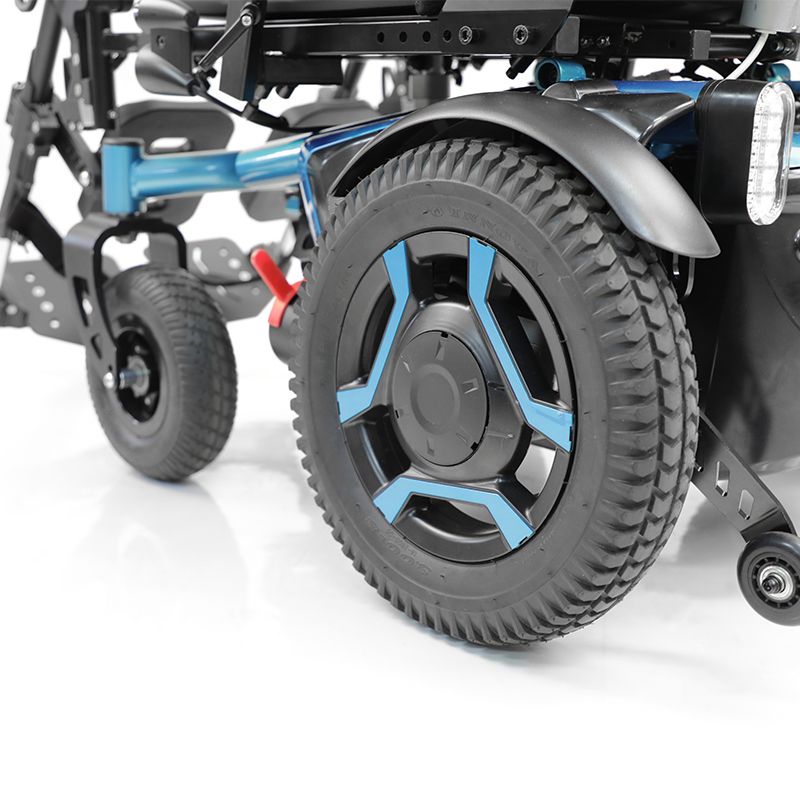

- Front Wheel: 9"*3"
- Rear Wheel: 14"*3"
- Total Mass(battery included): 106.5kg
- Weight of Battery: 30kg
- Maximum Safe Slope: 10°
- Minimum Turning Radius: 900mm
- Min. Braking Distance at Max. Speed: 1700mm
- Maximum Height of Obstacle: 50mm
- Suspension: Rear Suspension
Product Parameters
| ITEM NO. | Overall Length(cm) | Overall Width(cm) | Overall Height(cm) | Height Footplate(cm) | Seat Width(cm) | Seat Depth(cm) | Floor to Seat Height(cm) | Weight Capacity(kg) | Front Caster Spec. | Rear Wheel Spec. | Total Mass(inc./ex. bat.)(kg) | Carton Size(cm) |
| STAR | 108 | 58 | 121.5 | 13-20 | 43-48 | 43-48 | 75 | 136 | 9" | 14" | 106.5/76.5 | 102*72.5*85 |
