patient lift Y404
Y404
Y404
Y404
patient lift Y404
Y404
Y404
Y404

Y404

Lift: Y404

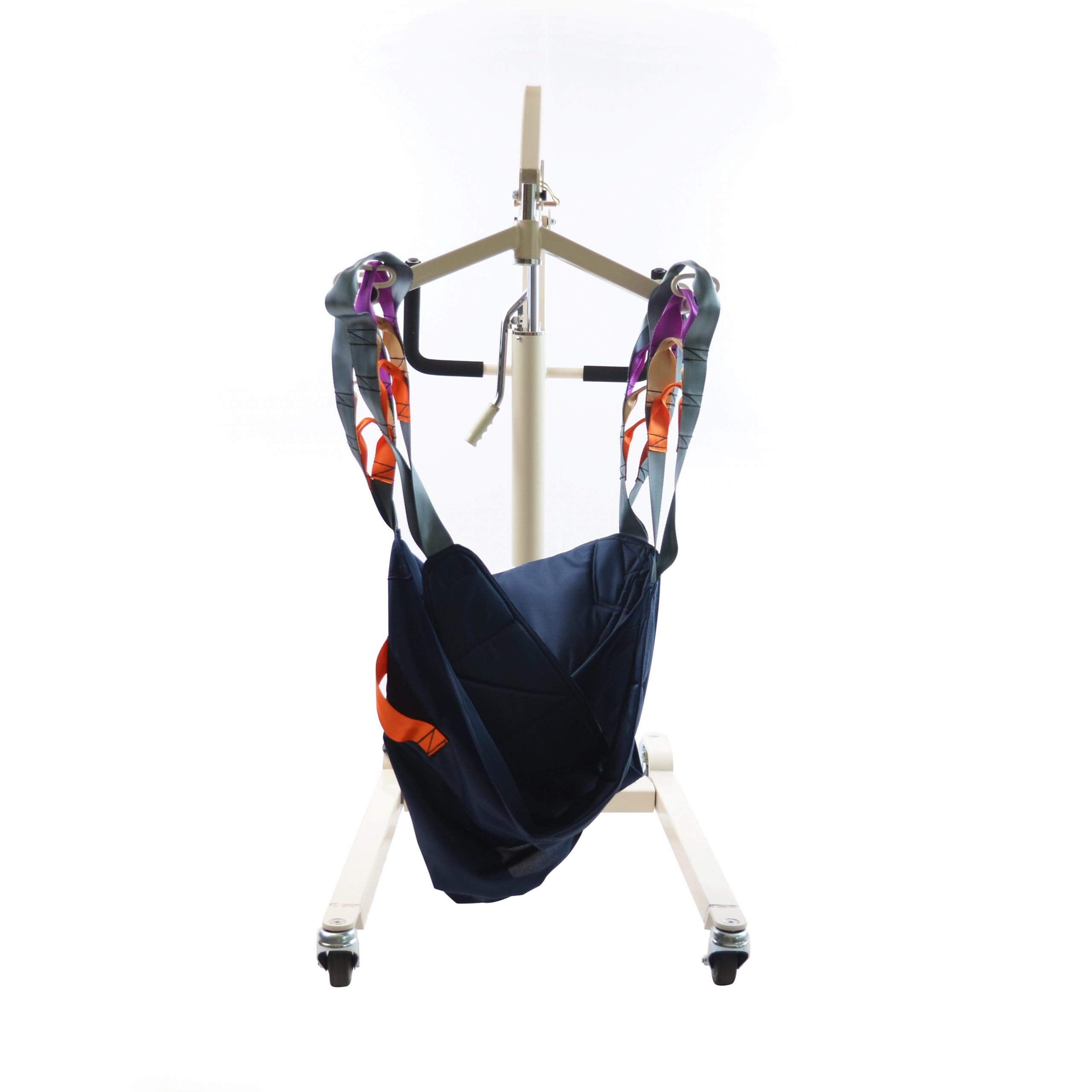

The Y404 Patient Transfer Lift is a durable, easy-to-use device for safe patient transfers. It features a sturdy frame, adjustable lift arm, and ergonomic handles. With lockable wheels for smooth mobility and stability, it’s ideal for hospitals, nursing homes, and home care. Compact and foldable for easy storage.

Frame: Steel, powder coating
Chassis Length: 1160mm
Chassis Width: 600mm-800mm
Lifting Height: 910mm-1900mm
Handle Height: 1000mm
Caster Height: 90mm
Motor: DC 24V 8000N
Battery: DC 24V 5Ah, rechargeable battery Approx. 60 lifts per full charge
Charger: 24V-1A
Charging Time: 6 hours per time
Front Caster: 3"solid tire, plastic wheel optional
Rear Caster: 4"solid tire with locking, plastic wheel optional
Max. User Weight: 150 KGS (23.62 stone)
Alternatives: Purpose designed sling
Package: 1240*630*350mm
G./N.W. 51/43 KGS

Key Features

Y404
Y404
Y404
Y404
Y404
Y404

Y404

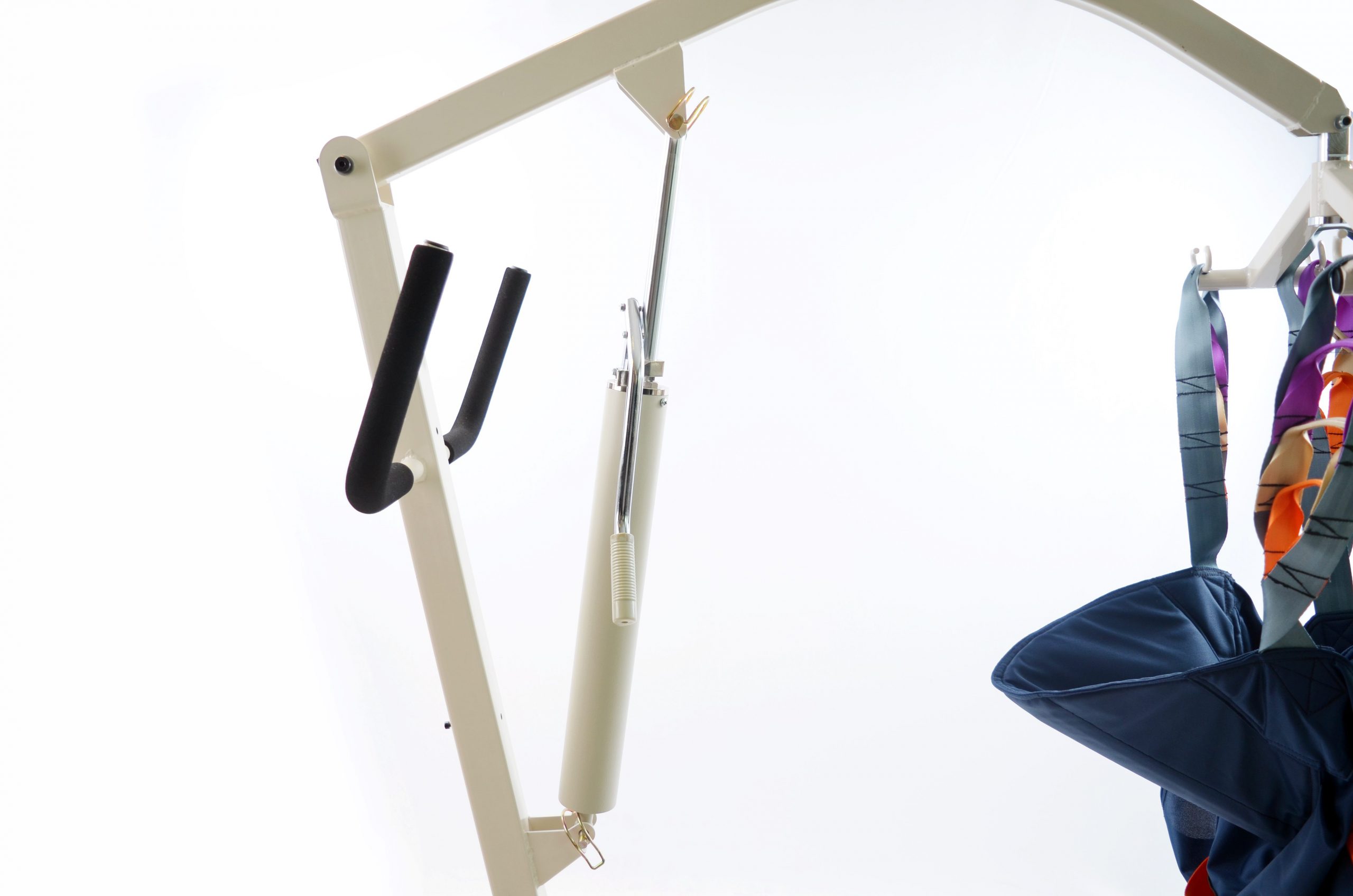

The Y404 Patient Transfer Lift stands out with its sturdy metal frame, adjustable lift arm, and wide, comfortable sling for secure transfers. Its ergonomic handles and smooth, lockable wheels ensure easy maneuverability and safety. The foldable design allows for convenient storage, making it perfect for use in hospitals, care facilities, and homes.

Product parameters

Chassis Length(mm) Chassis Width(mm) Lifting Height(mm) Handle Height(mm) Caster Height(mm) Motor Charger Front Caster Spec. Rear Caster Spec. Max. User Weight(kg) G./N. Weight(kg) Carton Size(mm)
1160 600-800 910-1900 1000 90 DC 24V 8000N 24V-1A 3″ 4″ 150 51/43 1240*630*350
